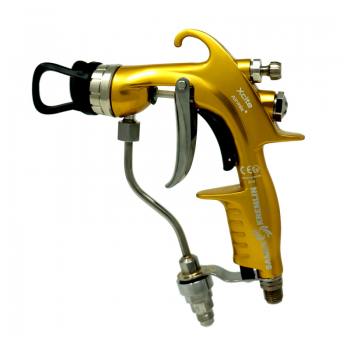

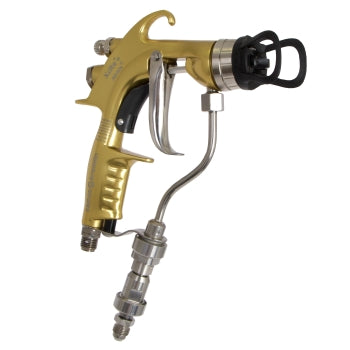

Sames Kremlin Xcite+ Spray Gun

Sames created Airmix ® technology in 1975. Airmix ® is an intermediate spray technology that combines the finish quality of Airspray with the productivity of Airless paint sprayer and is the industrial standard for Air-Assisted Airless today. The Xcite ®+ paint gun from the Sames range, benefits from our latest expertise. Airmix ® spraying technology is the best compromise between productivity and finish quality with the highest transfer efficiency up to 86%, minimizing paint waste, increasing productivity, improving working conditions and preserving the environment.

Performance

• Large tip selection with dedicated Xtra Fine Finish tips for water-based material with wide choice of flow rates and fan width patterns.
• Unsurpassed finishing quality and outstanding transfer efficiency with VX24 HVLP aircap.
• Built-in filter with high filtration capacity to avoid tip blockage and minimize pressure loss.
•  Job repeatability with our selection of tips that are individually tested to guarantee a consistent pattern.
• Diffuser and deflector embedded to decrease the atomizing air consumption and improve atomization.

Productivity

• Large amplitude of the fan width adjustment for time savings; no need to change the tip.
• New swivel conception for longer lifetime.
• Improved trigger design to ensure the operator's comfort.
• EZ Adjust Aircap to facilitate the rotation of the head from horizontal to vertical spray.
• Fluid inlet with or without swivel fitting for low torque effort minimizing operator fatigue.

Sustainability

• Increased operator safety with trigger lock and aircap protection.
• Anodized body with laser engraving not affected by exposure to solvents.
• Construction built to last and compatible with all types of materials (even water-based with stainless steel fluid passage and Rulon ® sealing).
• Double seal technology to prevent aircap leakage and paint return on the air circuit.

This Xcite+ Spray Gun includes:

x1 Xcite+ Spray Gun (Not Sold Seperately)

x1 Fine Finish Spray Tip (134-509-114) - Can be swapped out for another tip size.

x1 Gun Wrench (049-030-042)

x1 Gun Cover (668-668-602)

x1 Large Size Brush (906-300-101)

Parts Manual

Linked Spray Tip Chart

Gun Rebuild Video pt.1

Gun Rebuild Video pt 2.

Spray Tip Maintenance Video
