Graco Heavy-Duty Stainless Steel Back-Geared Drum Agitator, 2" Bung

Graco Heavy-Duty Stainless Steel Back-Geared Drum Agitator, 2" Bung

Keep coatings fully blended right in the drum. The Graco 24C522 is a heavy-duty, air-powered, back-geared agitator that mounts in a standard 2-inch drum bung and drives drums with a built-in shaft and blades. Its 24:1 gear reduction delivers steady, low-speed torque that keeps pigments and solids in suspension without whipping air into your material.

Key Features

• Back-geared drive: 24:1 gear reduction for strong, controlled mixing at low speed
• Bung mount: Fits standard 2-inch drum bungs for fast installation

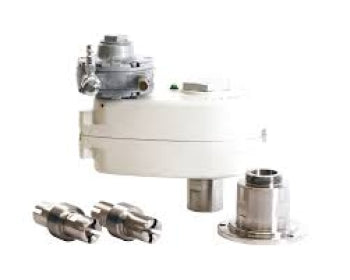

• Fits multiple shaft sizes: Includes the heavy-duty agitator drive plus two adapters covering 3/8", 7/16", 1/2", and 5/8" shafts
• Stainless steel construction: 303 stainless steel for compatibility with waterborne and solventborne materials
• Air-powered: Pneumatic drive suited to finishing environments
• Serviceable: Air motor repair kit 207335 available to extend service life

Specifications

• Mount: 2" drum bung
• Gear Ratio: 24:1
• Maximum Air Pressure: 100 psi (7 bar)
• Speed: 100 rpm
• Material: 303 stainless steel


Recommended add-on: the Graco 24G621 Agitator Speed Controller keeps output speed consistent as drum levels drop, preventing over-agitation of shear-sensitive and waterborne materials. For high-viscosity materials, Graco recommends kit 25T862. Need a 1.5" bung version? See part #24C293.

Ideal for finishing shops and production lines supplying paint or coatings from 55-gallon drums.
