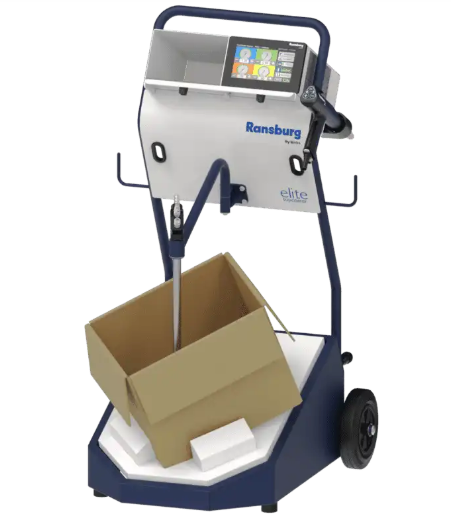

MS Elite Manual Powder Coating System – Vibratory Box Feed

MS Elite Manual Powder Coating System – Vibratory Box Feed

The MS Elite M5+ is built for production powder coating. It’s a manual system made for industrial shops, contract coaters, and high-throughput lines. The vibratory box feed draws powder straight from the supplier’s box, so there’s no hopper to fill or clean.

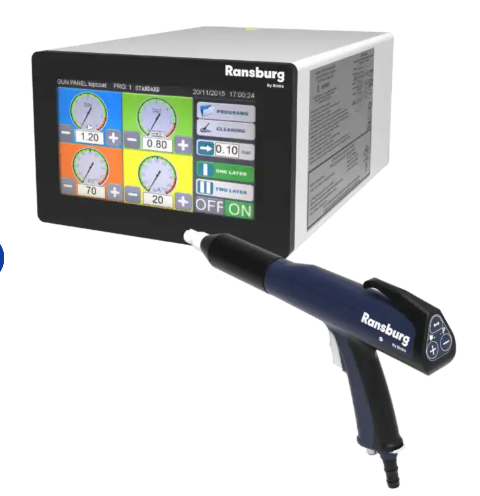

Operators get one of the lightest powder guns in its class, which cuts fatigue over long shifts. Settings are dialed in on a 7-inch color touchscreen. An automatic cleaning cycle handles color changes in about 30 seconds, which means less downtime between jobs.

MS Powder M5 Powder gun and 6 meter hose and cable set included in the package.

Key features:

• High transfer efficiency: advanced charging puts more powder on the part and less in the booth
• 96 programmable settings: save recipes for standard, metallic, and hard-to-coat geometries
• Flat spray and conical nozzles included: match the pattern to the part
• Configurable setup: single or dual applicators, with multiple cable and hose lengths
• ATEX and FM compliant
