MX1212 PUMP SYSTEM

System Features:

• Patented Anti-Stall Magnetic Detent Technology
• Stainless Steel Housing with Ceramic Coated Piston Rod

System Includes:

• MX1212 Wall Mount Pump
• 25Ft Fluid Hose
• 25Ft Air Line
• 5 Gallon Suction Rod
• Trophy AA Gun
• Pump filter is not included

System Specs:

• Pressure Ratio: 12:1
• Flow Rate @ 60 CPM 2 GPM
• Fluid Outlet 3/8” NPS(M)
• Air Consumption 2 SCFM
• Max Fluid Output 1390 PSI
• Max Air Inlet Pressure 116 PSI

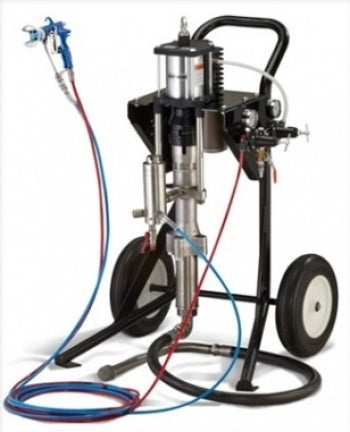

Pump is wall mounted not cart mounted as shown to the side, Filter is not included

Pump Parts Manual

Trophy AA Manual

Package Service Manual
