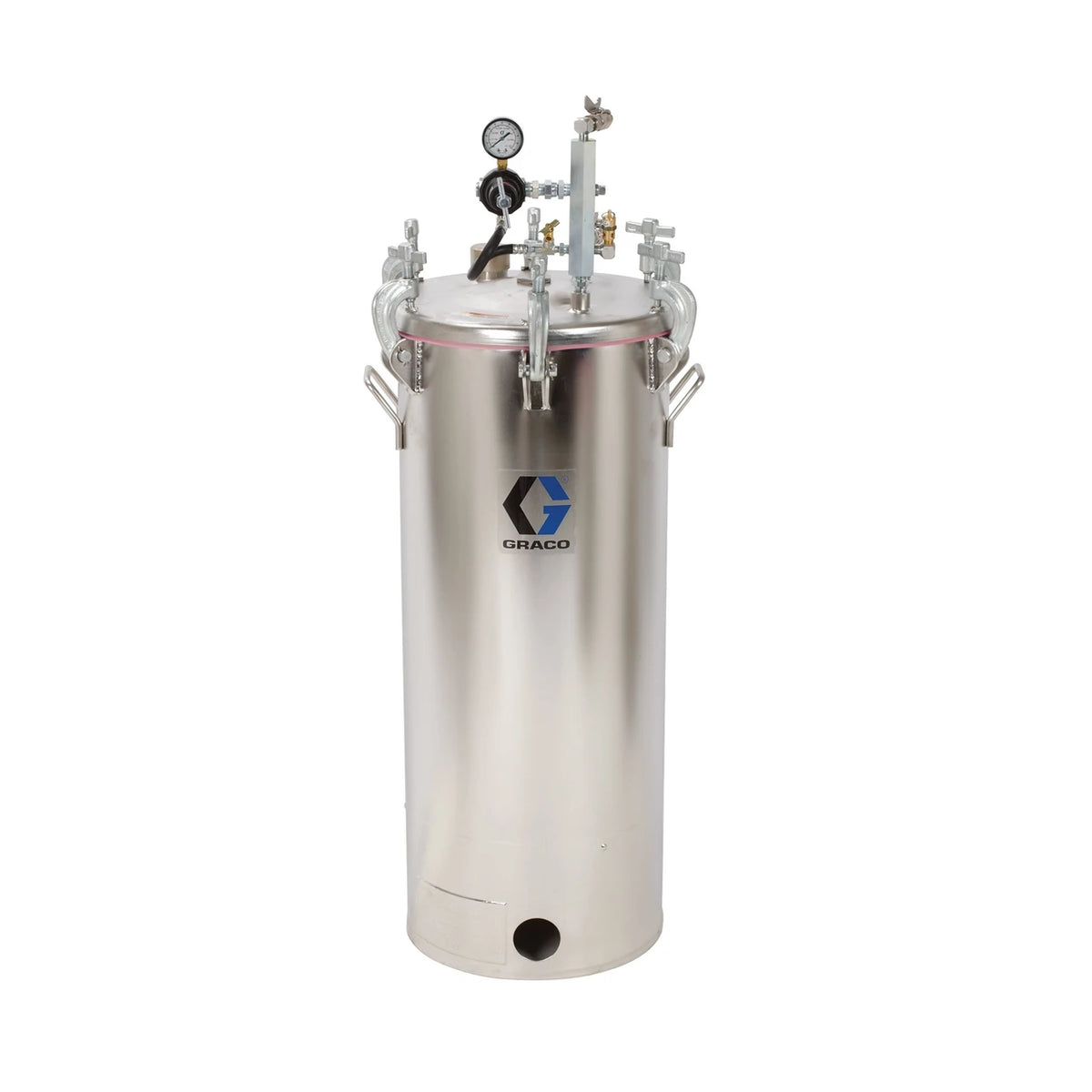

Graco 15-Gallon Low-Pressure (HVLP) Stainless Steel Pressure Tank

Graco 15-Gallon Low-Pressure (HVLP) Stainless Steel Pressure Tank

A rugged, ASME-rated pressure pot for steady, consistent material supply. The Graco 236145 holds 15 gallons (57 L) and is regulated to 15 psi, making it a natural match for HVLP spraying. Its precision-welded stainless steel construction and electroplated surfaces resist debris buildup and keep your material clean and contaminant-free.

Key Features

• ASME rated: Built to meet factory pressure-vessel standards
• HVLP-ready: Regulated to 15 psi for low-pressure spray applications
• Stainless steel construction: Compatible with a wide range of materials, including waterborne coatings
• Clean operation: Electroplated, precision-welded surfaces resist debris buildup
• Versatile: Use for stand-alone spraying, material or catalyst supply, or as a reservoir for moisture-sensitive materials
• Generous capacity: 15-gallon rated size for longer runs between refills

Specifications

• Type: Low-Pressure Stainless Steel Pressure Tank (no agitator)
• Capacity: 15 gallons (57 L)
• Maximum Working Pressure: 15 psi (1 bar)
• Air Inlet: 1/4" NPT (male)
• Fluid Outlet: 3/8" NPSM (male)
• Overall Height: 44.57" (1132 mm)
• Overall Width: 19"
• Weight: 92 lb (42 kg)
• Wetted Materials: Stainless steel, Santoprene, polyamide, PET

Need mixing? See part #236148 (same tank with agitator). Need higher pressure? See part #236151 (100 psi version).

Ideal for finishing shops supplying HVLP guns from a central pot, or storing and feeding catalysts and moisture-sensitive materials.
