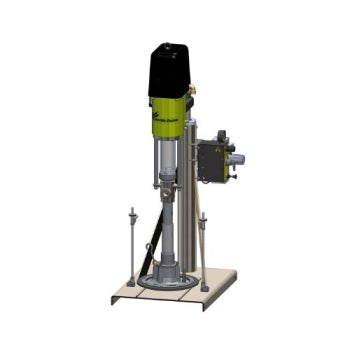

60.60 PUMP - SINGLE POST RAM (5Gal/20L) EXTRUSION UNIT

FEATURES & BENEFITS
Modular design - Wide range of options available to suit most applications.

Air motor design enables precise control - The unique air motor design ensures a constant controlled flow rate with low noise and minimum icing risk.

Direct pumping from 5 Gal (20 L) pail - Clean wipe of the material drum reducing material waste.

Shovel pump technology - Can be used with a wide range of materials.

Pneumatic-driven pump - Safe for use near solvents and other flammable materials.

SPECIFICATIONS
Pressure ratio 60:1
Motor type 3000
Fluid volume per cycle - 60cc
Free flow rate at 60 cycles - .95gpm (3.6l/min)
Fluid output at 15 cycles - .24gpm (0.9l/min)
Maximum air inlet pressure - 87psi (6bar)
Maximum fluid pressure - 5290psi (360bar)
Maximum fluid temperature - 140°F (60°C)
Seal packings - PTFE + PE
Wetted parts - Carbon steel
Weight (bare pump) - 42lb (19kg)

FITTINGS
Fitting Air Inlet² 3/4'' F BSPP
Fluid Outlet 3/4'' F BSPP
²Recommended air supply hose diameter 1/2"

Sames Dispense Guide

Accessories
Cart Kit - 668-098-060

Filter & Regulator:
*Option A: Regulator with fitting and mounting accessories (plate, fittings, hose...) 151-260-985
*Option B: Filter with fitting and mounting accessories (plate, fittings, hose...) 151-260-986
*Option C: Filter and regulator with fitting and mounting accessories (plate, fittings, hose...) 151-260-987

Hose & Fittings to Feed Gun
668-260-980 - Ø 3/8" PTFE hose 3/4" JIC fitting, 15' lg with all required fittings.
Fluid Hose Diameter: 3/8"
Length: 15'

Manual Gun & Accessories
668-110-500 - Extrusion gun 7251psi (500bar) (Equipped - swivel, gun, nozzles)
668-110-010 - Plastic Disposable Nozzles (x10)
