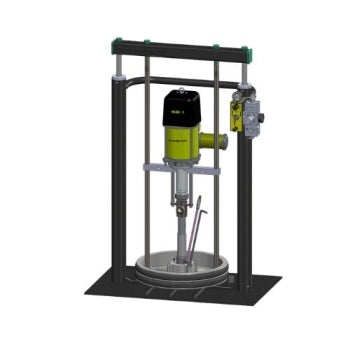

63.106 PUMP - TWIN POST RAM (5 Gal/20L - 55 Gal/200L) EXTRUSION UNIT

FEATURES & BENEFITS
Modular Design - Wide range of options available to suit most applications.

Air motor design enables precise control - The unique air motor design ensures a constant controlled flow rate with low noise and minimum icing risk.

Direct pumping from 55 Gal (200 L) drum - Clean wipe of the material drum reducing material waste.

Shovel pump technology - Can be used with a wide range of materials.

Choice of double seal on follower plate - Recommended for high viscosity and moisture-sensitive materials.

Pneumatic driven pump - Safe for use near solvents and other flammable materials.

SPECIFICATIONS
Pressure ratio - 63:1
Motor type - 5000
Fluid volume per cycle - 106cc
Free flow rate at 60 cycles - 1.7gpm (6.3l/min)
Fluid output at 15 cycles - .42gpm (1.6l/min)
Maximum air inlet pressure - 87psi (6bar)
Maximum fluid pressure - 5482psi (378bar)
Maximum fluid temperature - 140°F (60°C )
Seal packings - PTFE + PE
Wetted parts - Carbon steel
Weight (bare pump) - 66lb (30kg)

FITTINGS
Fitting Air Inlet² - 3/4'' F BSPP
Fluid Outlet - 3/4'' F BSPP
²Recommended air supply hose diameter 1/2”

Sames Dispense Guide

Accessories
Filter & Regulator
*Option A: Regulator with fitting and mounting accessories (plate, fittings, hose...) 151-260-985
*Option B: Filter with fitting and mounting accessories (plate, fittings, hose...) 151-260-986
*Option C: Filter and regulator with fitting and mounting accessories (plate, fittings, hose...) 151-260-987

Hose and Fittings to feed gun
668-260-981 - Ø 1/2" PTFE hose 7/8" JIC fitting, 15' lg and PTFE Ø 3/8" whip-end 3/4" JIC fitting, 5' lg with all required fittings.
Fluid Hose Diameter: 1/2" + 3/8"
Length: 20'

Manual Gun and Accessories
Extrusion gun 7251 psi (500bar) (equipped - swivel, gun, adapter, nozzles) - 668-110-500
Plastic disposable nozzles(x10) - 668-110-010
