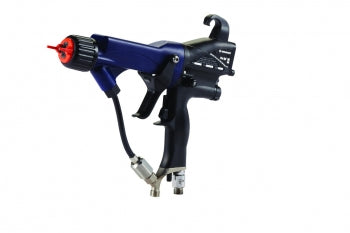

Graco Pro XP Air Assisted Airless Spray Electrostatic Spray gun

Name: Graco Pro XP Air Assisted Airless Spray Electrostatic Spray gun
Brand: GRACO INC.
SKU: H85T10
Price: 10070.0 USD
Availability: InStock

H85T10

$10,070.00

Voltage Rating

85 KV

High Air Flow Model

No Yes

Smart Gun

No Yes

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

Graco Pro XP Air Assisted Airless Spray Electrostatic Spray gun

$10,070.00

Product details

Air Assisted Airless Manual Spray Gun. 85 kV. Ergonomic design. Internal turbine power supply. No cables or electric supply required. Choice of 1 fluid tip. Requires special grounded air hose assembly to be ordered separately. (223070)

PARTS MANUAL

Technical Specifications

Air Inlet Size (cm)	0.635
Air Inlet Size (in)	1/4
Air Inlet Size (mm)	6.35
Air Inlet Thread Gender	Male
Gun Weight (g)	728
Gun Weight (kg)	0.73
Gun Weight (lb)	1.6
Gun Weight (oz)	25.68
Includes	Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar)	210
Maximum Fluid Pressure (kg/cm ²)	214.14
Maximum Fluid Pressure (kPa)	21000
Maximum Fluid Pressure (psi)	3000
Maximum Fluid Temperature ( °C)	48
Maximum Fluid Temperature ( °F)	120
Model	Pro Xp
Overall Length (cm)	27.18
Overall Length (in)	10.7
Overall Length (mm)	271.8
Series	85
Technology Type	Air-Assisted
Maximum Fluid Pressure (MPa)	21
Fluid Inlet Size (in)	1/4
Fluid Inlet Thread Gender	Male
Display Type	Standard
Maximum Paint Resistivity (megohm/cm)	Infinity
Minimum Paint Resistivity (megohm/cm)	3
Voltage (kV)	85
