PUMP,307P-PP01AP3PPPTPTPT

Name: PUMP,307P-PP01AP3PPPTPTPT
Brand: GRACO INC.
SKU: D32911
Price: 861.0 USD
Availability: InStock

D32911

$861.00

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

PUMP,307P-PP01AP3PPPTPTPT

$861.00

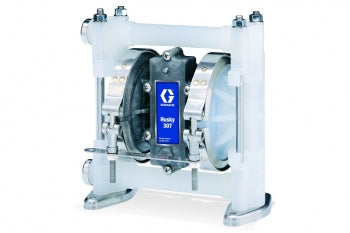

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Polypropylene construction with Poly seats, PTFE Balls, PTFE Diaphragms. 1:1 Ratio. Up to 7 GPM. 3/8" NPT Female Ports.

Air Exhaust Port Size (in)	3/8
Air Exhaust Port Thread Gender	Female
Air Inlet Size (in)	1/4
Air Inlet Thread Gender	Female
Fluid Inlet Size (cm)	0.9525
Fluid Inlet Size (in)	3/8
Fluid Inlet Size (mm)	9.525
Fluid Inlet Thread Gender	Female
Fluid Outlet Size (cm)	0.9525
Fluid Outlet Size (mm)	9.525
Fluid Outlet Thread Gender	Female
Maximum Air Consumption (SCFM)	5.5
Maximum Air Pressure (bar)	7
Maximum Air Pressure (kPa)	700
Maximum Air Pressure (psi)	100
Maximum Cycle Rate (CPM)	330
Maximum Flow Rate (L/min)	24.6
Maximum Fluid Pressure (bar)	7
Maximum Fluid Pressure (kPa)	700
Maximum Fluid Pressure (psi)	100
Maximum Operating Temperature (°C)	66
Maximum Operating Temperature (°F)	150
Maximum Solid Size (cm)	0.1588
Maximum Solid Size (in)	0.0625
Maximum Solid Size (mm)	1.5875
Minimum Operating Temperature (°C)	4
Minimum Operating Temperature (°F)	40
Model	Husky
Overall Height (in)	8.13
Series	307
Maximum Fluid Pressure (MPa)	0.7
Maximum Air Pressure (MPa)	0.7
diaphragm_compatible_material	PTFE
