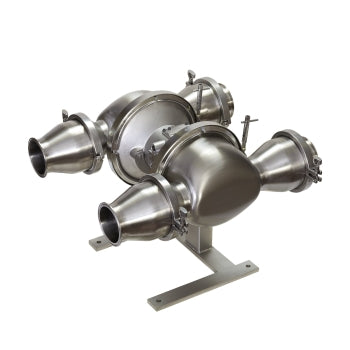

PUMP,4150HS.PS01ASSAFL-SPEP21

Name: PUMP,4150HS.PS01ASSAFL-SPEP21
Brand: GRACO INC.
SKU: SP4F.0008
Price: 22960.0 USD
Availability: InStock

SP4F.0008

$22,960.00

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

PUMP,4150HS.PS01ASSAFL-SPEP21

$22,960.00

Product details

Height: 54 IN | 137.16 CM

Length: 28.5 IN | 72.39 CM

Width: 33.5 IN | 85.09 CM

Volume: 29.836 FT3 | .845 M3

Chargeable Weight: 310.582 LBS | 140.81 KG

Technical Specifications

TYPE	Pneumatic Diaphragm Pump
AIR EXHAUST PORT SIZE (IN)	3/4
AIR EXHAUST PORT THREAD GENDER	Female
AIR EXHAUST PORT THREAD TYPE	NPT
AIR INLET SIZE (IN)	1/2
AIR INLET THREAD GENDER	Female
AIR INLET THREAD TYPE	NPT
APPLICATION	Sanitary
CENTER SECTION MATERIAL	Stainless Steel
COMPATIBLE MATERIAL	Edible Oil, Food, Personal Care
DIAPHRAGM MATERIAL	Santoprene
FLUID INLET SIZE (CM)	10.16
FLUID INLET SIZE (IN)	4
FLUID INLET SIZE (MM)	101.6
FLUID OUTLET SIZE (CM)	10.16
FLUID OUTLET SIZE (IN)	4
FLUID OUTLET SIZE (MM)	101.6
FLUID SECTION MATERIAL	Stainless Steel
FOR USE WITH	Food, Alimentos, Personal Care, cuidado personal
MANIFOLD CONFIGURATION	Center Port
MANIFOLD O-RING MATERIAL	EPDM
MAXIMUM AIR CONSUMPTION (SCFM)	235
MAXIMUM AIR PRESSURE (BAR)	8.27
MAXIMUM AIR PRESSURE (KPA)	827
MAXIMUM AIR PRESSURE (PSI)	120
MAXIMUM CYCLE RATE (CPM)	225
MAXIMUM FLOW RATE (GPM)	90
MAXIMUM FLOW RATE (L/MIN)	341
MAXIMUM FLUID PRESSURE (BAR)	8.27
MAXIMUM FLUID PRESSURE (KPA)	827
MAXIMUM FLUID PRESSURE (PSI)	120
MAXIMUM OPERATING TEMPERATURE (°C)	82
MAXIMUM OPERATING TEMPERATURE (°F)	180
MAXIMUM SOLID SIZE (CM)	9.65
MAXIMUM SOLID SIZE (IN)	3.8
MAXIMUM SOLID SIZE (MM)	96.5
MINIMUM OPERATING TEMPERATURE (°C)	-40
MINIMUM OPERATING TEMPERATURE (°F)	-40
MODEL	SaniForce
OVERALL HEIGHT (IN)	45.9
PUMP RATIO	1:1
SERIES	4150 HS
STANDARDS MET	CE, ATEX, FDA Compliant Materials
WEIGHT (LB)	168
WETTED MATERIAL	Stainless Steel, Santoprene
MAXIMUM FLUID PRESSURE (MPA)	0.827
MAXIMUM AIR PRESSURE (MPA)	0.827
CONNECTION TYPE	Tri-Clamp
DIAPHRAGM_COMPATIBLE_MATERIAL	Santoprene
MATERIAL CERTIFICATION	EN 1024:2004 Type 2.1 (Standard)
