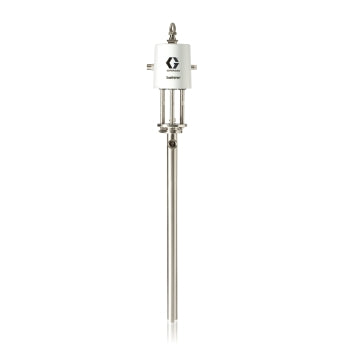

PUMP, 6:1 SAN DB DL

Name: PUMP, 6:1 SAN DB DL
Brand: GRACO INC.
SKU: 24E840
Price: 10560.0 USD
Availability: InStock

24E840

$10,560.00

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

PUMP, 6:1 SAN DB DL

$10,560.00

Height: 15.6 IN | 39.624 CM

Length: 64.8 IN | 164.592 CM

Width: 15.6 IN | 39.624 CM

Volume: 9.13 FT3 | .259 M3

Chargeable Weight: 94.999 LBS | 43.07 KG

TYPE	Pneumatic Piston Pump
AIR INLET SIZE (IN)	0.5
AIR INLET SIZE (MM)	12.7
AIR INLET THREAD GENDER	Female
AIR INLET THREAD TYPE	NPSM
APPLICATION	Sanitary
COMPATIBLE MATERIAL	Food, Personal Care
FLUID OUTLET SIZE (IN)	1-1/2
FLUID OUTLET SIZE (MM)	38.1
FOR USE WITH	Food, Personal Care, & Pharmaceutical, Alimentation, soins personnels et secteur pharmaceutique, Alimentos, cuidado personal, farmacéutica, Lebensmittel, Körperpflege und Arzneimittel, Voeding, persoonlijke zorg en farma, Settori alimentare, cura personale e farmaceutico
MAXIMUM AIR CONSUMPTION (SCFM)	29
MAXIMUM AIR INLET PRESSURE (BAR)	6.9
MAXIMUM AIR INLET PRESSURE (KPA)	690
MAXIMUM AIR INLET PRESSURE (PSI)	100
MAXIMUM CONTINUOUS CYCLE RATE (CPM)	60
MAXIMUM FLOW RATE (GPM)	4
MAXIMUM FLOW RATE (L/MIN)	15.14
MAXIMUM INTERMITTENT CYCLE RATE (CPM)	60
MAXIMUM WORKING PRESSURE (BAR)	44.8
MAXIMUM WORKING PRESSURE (KPA)	4480
MAXIMUM WORKING PRESSURE (PSI)	650
MODEL	SaniForce
PORTABLE	Non-Portable
PUMP RATIO	6:1
SEAL MATERIAL	Buna, Nylon, Nitrile, CR
STANDARDS MET	FDA Compliant Materials, CE
WETTED MATERIAL	Stainless Steel, Buna-N, Polychloroprene, Nitrile Rubber, Nylon, UHMWPE
MAXIMUM WORKING PRESSURE (MPA)	4.5
