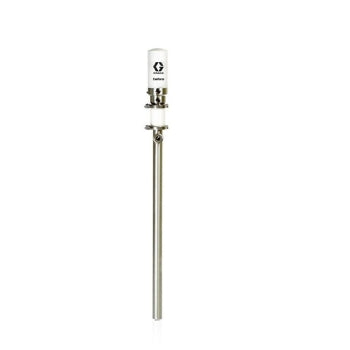

PUMP, SANI 2:1, STD LGTH, PTFE

Name: PUMP, SANI 2:1, STD LGTH, PTFE
Brand: GRACO INC.
SKU: 24R047
Price: 6130.0 USD
Availability: InStock

24R047

$6,130.00

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

PUMP, SANI 2:1, STD LGTH, PTFE

$6,130.00

Height: 30.48 CM | 12 IN

Length: 63.6 IN | 161.544 CM

Width: 10.8 IN | 27.432 CM

Volume: 4.77 FT3 | .135 M3

Chargeable Weight: 49.654 LBS | 22.512 KG

TYPE	Pneumatic Piston Pump
AIR INLET SIZE (IN)	3/8
AIR INLET SIZE (MM)	9.525
AIR INLET THREAD GENDER	Female
AIR INLET THREAD TYPE	NPT
APPLICATION	Sanitary
COMPATIBLE MATERIAL	Food, Personal Care
FLUID OUTLET SIZE (IN)	1
FLUID OUTLET SIZE (MM)	25.4
FOR USE WITH	é£Ÿå“ã€ãƒ‘ãƒ¼ã‚½ãƒŠãƒ«ã‚±ã‚¢ & åŒ»è–¬å“, Food, Personal Care, & Pharmaceutical, Food, Personal Care, & Pharmaceutical, Alimentation, soins personnels et secteur pharmaceutique, Alimentos, cuidado personal, farmacéutica, Lebensmittel, Körperpflege und Arzneimittel, Voeding, persoonlijke zorg en farma, Settori alimentare, cura personale e farmaceutico
MAXIMUM AIR CONSUMPTION (SCFM)	6
MAXIMUM AIR INLET PRESSURE (BAR)	6.9
MAXIMUM AIR INLET PRESSURE (KPA)	690
MAXIMUM AIR INLET PRESSURE (PSI)	100
MAXIMUM CONTINUOUS CYCLE RATE (CPM)	60
MAXIMUM FLOW RATE (GPM)	2.5
MAXIMUM FLOW RATE (L/MIN)	9.46
MAXIMUM INTERMITTENT CYCLE RATE (CPM)	60
MAXIMUM WORKING PRESSURE (BAR)	17
MAXIMUM WORKING PRESSURE (KPA)	1700
MAXIMUM WORKING PRESSURE (PSI)	250
MODEL	SaniForce
PORTABLE	Non-Portable
PUMP RATIO	2:1
SEAL MATERIAL	PTFE, Nitrile
STANDARDS MET	FDA Compliant Materials, CE
WETTED MATERIAL	Stainless Steel, Acetal, PTFE, FKM, UHMWPE
MAXIMUM WORKING PRESSURE (MPA)	1.7
