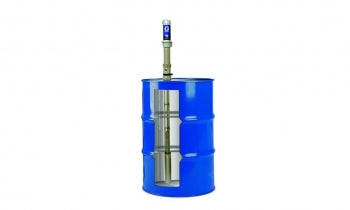

Graco T1 Stainless Steel Transfer Pump

Graco T1 Stainless Steel Transfer Pump

Dependable drum-to-proportioner transfer in a lighter, more compact package. The Graco T1 is an air-powered piston transfer pump built to move A and B materials from 55-gallon drums to Reactor® proportioners and other fluid-transfer equipment. It delivers consistent feed pressure and flow, handles higher-viscosity materials at any ambient temperature, and is designed for long service life with minimal maintenance.

Key Features

• Consistent feed: Steady feed pressures and flow rates for dependable spray results
• Handles thick materials: Lower pressure drops with higher-viscosity materials at any ambient temperature
• Versatile: Rated for polyurethane foam, polyurea, and solvent-borne and waterborne materials
• Quick-release bung adapter: Remove drums easily without interference from hose connections
• Stainless steel wetted parts: Corrosion-resistant construction
• PTFE seals: Improved performance and less maintenance
• Built to last: Designed for durability and reduced upkeep

Specifications

• Model: T1 Transfer (Supply) Pump
• Pump Type: Air-operated piston
• Ratio: 2:1
• Maximum Flow: 2.5 gpm
• Maximum Cycle Rate: 100 cpm (continuous)
• Cycles per Gallon: 40
• Maximum Air Inlet Pressure: 180 psi (12 bar)
• Maximum Fluid Working Pressure: 360 psi (25 bar)
• Maximum Fluid Temperature: 180°F (82°C)
• Maximum Ambient Temperature: 120°F
• Air Inlet: 1/4" NPT (female)
• Fluid Outlet: 1/2" NPT (female)
• Wetted Parts: Stainless steel, PTFE, PEEK
• For Use With: 55-gallon (200 L) drums
• Height: 51.5"
• Weight: 18.5 lb (8.4 kg)
• Sound Pressure: 88.7 dB(A) at 80 psi
