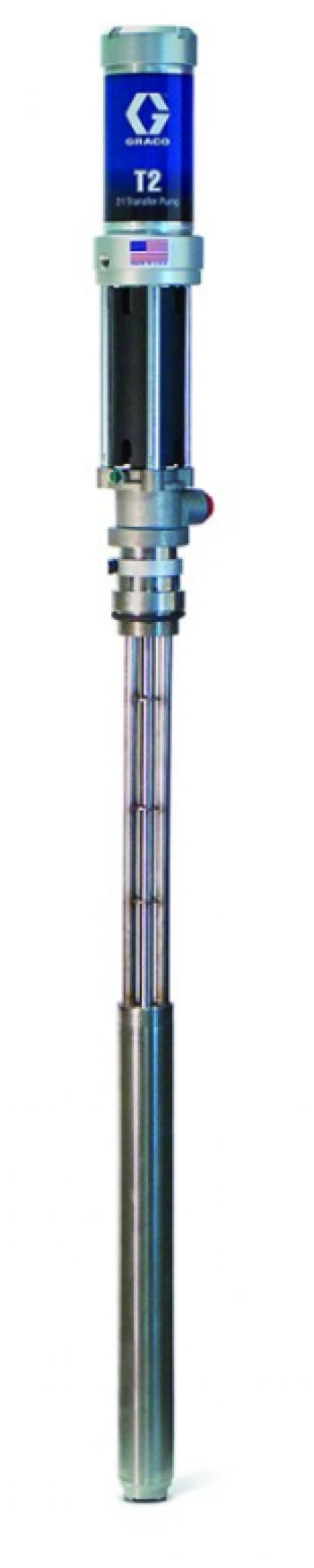

Graco T2 Stainless Steel Transfer Pump

Graco T2 Stainless Steel Transfer Pump

Keep your proportioner fed with steady, reliable pressure. The Graco T2 is an air-powered piston transfer pump built to move A and B materials from 55-gallon drums to Reactor® proportioners and other equipment. It maintains consistent feed pressure and flow, handles higher-viscosity materials even in cold conditions, and its durable O-ring seal design means more spraying time and less maintenance.

Key Features

• Consistent feed: Steady feed pressures and flow rates for dependable spray results
• Handles thick materials: Lower pressure drops with higher-viscosity materials at any ambient temperature
• High output: Up to 5 gpm continuous for faster jobs
• Quick-release bung adapter: Remove drums easily without interference from hose connections
• Stainless steel wetted parts: Corrosion-resistant construction
• PTFE seals: Improved performance and less maintenance
• Built to last: Durable O-ring seal design for longer service life

Specifications

• Model: T2 Transfer (Supply) Pump
• Pump Type: Air-operated piston
• Ratio: 2.25:1
• Maximum Output: 5 gpm (19 lpm) continuous; 7.5 gpm (28 lpm) intermittent
• Maximum Air Inlet Pressure: 180 psi (12 bar)
• Maximum Fluid Outlet Pressure: 405 psi (28 bar)
• Maximum Fluid Temperature: 190°F (88°C)
• Maximum Ambient Temperature: 120°F (50°C)
• Air Inlet: 1/4" NPT (female)
• Fluid Outlet: 3/4"
• Wetted Parts: Stainless steel
• Seals: PTFE
• For Use With: 55-gallon drums
• Compatible Materials: Polyurethane foam, polyurea
• Length: Approx. 54"
• Weight: Approx. 21 lb (9.5 kg)
