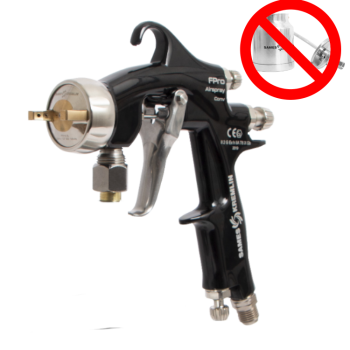

Sames F-Pro Siphon Feed Spray Gun

Conventional Manual Suction Spray Gun
SPECS

Designation Value Unit: metric (US)
Maximum Fluid Outlet 750 (26.3) cc/min (oz/min)
Minimum Fluid Outlet 200 (7)
6 (87)
cc/min (oz/min)
Maximum Air Pressure bar (psi)
Recommended Air Pressure (min) 2.5 (36) - 3.5 (51) bar (psi)
Air Consumption 23 (13.5) - 29.7(17.5) m3/h (cfm)
Maximum Fluid Temperature 50 (122) °C ( °F)
Air Inlet M 1/4" NPS
Fluid Inlet M 3/8" NPS
Weight 480 (16.9) g (oz)
PH 5-8
Transfer Efficiency CONV 66 %
