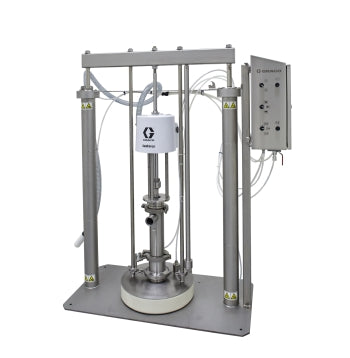

SANIFORCE DRUM UNLOADER SYSTEM,RAM,HYGIENIC

Name: SANIFORCE DRUM UNLOADER SYSTEM,RAM,HYGIENIC
Brand: GRACO INC.
SKU: SDU.A05AAA2AA0C21
Price: 62680.0 USD
Availability: InStock

SDU.A05AAA2AA0C21

$62,680.00

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

SANIFORCE DRUM UNLOADER SYSTEM,RAM,HYGIENIC

$62,680.00

Product details

3A5402R, SaniForce Drum Unloader (SDU), Operation, English

3A5404K, SaniForce Drum Unloader (SDU) System, Repair/Parts, English

3A6101C, SaniForce™ Pneumatic Controls, Instructions-Parts, English

SaniForce 2.0 Product Brochure

Specs

Height: 76.5 IN | 194.31 CM

Length: 61 IN | 154.94 CM

Width: 34 IN | 86.36 CM

Volume: 91.818 FT3 | 2.6 M3

Chargeable Weight: 955.79 LBS | 433.332 KG

Technical Specifications

COMPATIBLE DRUM HEIGHT (CM)	101.6
COMPATIBLE DRUM HEIGHT (IN)	40
COMPATIBLE DRUM HEIGHT (MM)	1016
COMPATIBLE DRUM INSIDE DIAMETER (CM)	54.6-59.0
COMPATIBLE DRUM INSIDE DIAMETER (IN)	21.5-23.25
COMPATIBLE DRUM INSIDE DIAMETER (MM)	546-590
CONTROL PANEL MATERIAL	Stainless Steel
CONTROL PANEL TYPE	Enclosed
FINISH/COATING	Bead Blast
FRAME MATERIAL	Stainless Steel
MAXIMUM AIR INLET PRESSURE (BAR)	6.89
MAXIMUM AIR INLET PRESSURE (KG/CM²)	7.03
MAXIMUM AIR INLET PRESSURE (KPA)	690
MAXIMUM AIR INLET PRESSURE (PSI)	100
MAXIMUM FLOW RATE (GPM)	8.5
MAXIMUM FLOW RATE (L/MIN)	32.2
MAXIMUM FLUID PRESSURE (BAR)	83
MAXIMUM FLUID PRESSURE (KPA)	8300
MAXIMUM FLUID PRESSURE (PSI)	1200
MAXIMUM HEIGHT (CM)	295
MAXIMUM HEIGHT (FT)	9.7
MAXIMUM HEIGHT (IN)	116
MAXIMUM HEIGHT (M)	2.95
MAXIMUM HEIGHT (MM)	2946
MAXIMUM OPERATING TEMPERATURE (°C)	32
MAXIMUM OPERATING TEMPERATURE (°F)	90
MAXIMUM WORKING PRESSURE (BAR)	83
MAXIMUM WORKING PRESSURE (KPA)	8300
MAXIMUM WORKING PRESSURE (PSI)	1200
MINIMUM HEIGHT (CM)	194
MINIMUM HEIGHT (FT)	6.4
MINIMUM HEIGHT (IN)	76.2
MINIMUM HEIGHT (M)	1.94
MINIMUM HEIGHT (MM)	1935
MODEL	SaniForce 2.0 Drum Unloader
OVERALL DEPTH (CM)	69.8
OVERALL DEPTH (IN)	27.5
OVERALL DEPTH (MM)	699
OVERALL WIDTH (CM)	146
OVERALL WIDTH (IN)	57.5
OVERALL WIDTH (MM)	1461
PUMP RATIO	12:1
PUMP TYPE	Piston
RAM MATERIAL	Stainless Steel
SERIES	A
STANDARDS MET	CE, ATEX, EC 1935/2004, FDA Compliant Materials
WEIGHT (KG)	279
WEIGHT (LB)	615
WETTED MATERIAL	316 Stainless Steel, Polychloroprene, Nitrile, Nylon, UHMWPE, PTFE
TYPE	Drum Unloader
APPLICATION	Food, Personal Care
AMBIENT/WARM MELT/HOT MELT	90, 90, 90, 90, 90, 90, 90, 90, 90
POWER TYPE	Pneumatic, Electric
CONTAINER TYPE	Drum
MAXIMUM WORKING PRESSURE (MPA)	8.3
MATERIAL CONTAINER VOLUME (GAL)	55
MATERIAL CONTAINER VOLUME (L)	208
