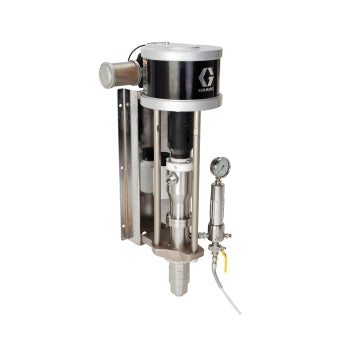

SYSTEM,PUMP,BELLOW,100CC,STD

Name: SYSTEM,PUMP,BELLOW,100CC,STD
Brand: GRACO INC.
SKU: G35B01
Price: 9580.0 USD
Availability: InStock

G35B01

$9,580.00

Note

Freight will be calculated at time of shipping. Quantity and location will determine freight type and cost.

SYSTEM,PUMP,BELLOW,100CC,STD

$9,580.00

Product details

Highest technology air motor on the market
Low air consumption for increased efficiency
Simple air motor design and minimal parts reduces repair time
Easy-to-flush design allows for fast color changes and reduced material waste
300 series stainless steel pump construction provides long-lasting durability

*Note: This item is considered oversized and must be shipped freight if it is not picked up. There is a $275 freight charge that will automatically be added to your order. This charge is multiplied by the quantity of this item that are ordered.

Height: 27.6 IN | 70.104 CM

Length: 42 IN | 106.680 CM

Width: 22.8 IN | 57.912 CM

Volume: 15.3 FT3 | 0.433 M3

Shipping Weight: 130 LBS | 58.967 KG

Technical Specifications

Application	Supply
Compatible Material	Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating
Fluid Inlet Size (cm)	1.905
Fluid Inlet Size (in)	3/4
Fluid Inlet Size (mm)	19.05
Fluid Inlet Thread Gender	Male
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (cm)	0.9525
Fluid Outlet Size (in)	3/8
Fluid Outlet Size (mm)	9.53
Fluid Outlet Thread Gender	Male
Fluid Outlet Thread Type	NPT
Includes	Pump Only Air Controls, Fluid Filter, V-Packing
Material	Stainless Steel
Maximum Operating Temperature ( °C)	49
Maximum Operating Temperature ( °F)	120
Maximum Working Pressure (bar)	241
Maximum Working Pressure (kg/cm ²)	246.07
Maximum Working Pressure (kPa)	24100
Maximum Working Pressure (psi)	3500
Motor Type	Pneumatic
Mount Location	Wall Mount
Number of Pieces	2
Series	Bellows
Pump Ratio	35:1
Pump Type	Pneumatic Piston Pump
Maximum Flow Rate (gpm @ 60 cpm)	1.6
Wetted Material	Stainless Steel
Type	Pneumatic Piston Pump
Gun Type	No Applicator
Gun Model	No Applicator
Mount Type	Wall Mount
Product Type	Bare Package
Maximum Working Pressure (MPa)	24.1
Gun Technology	Bare Package
Model	Merkur
