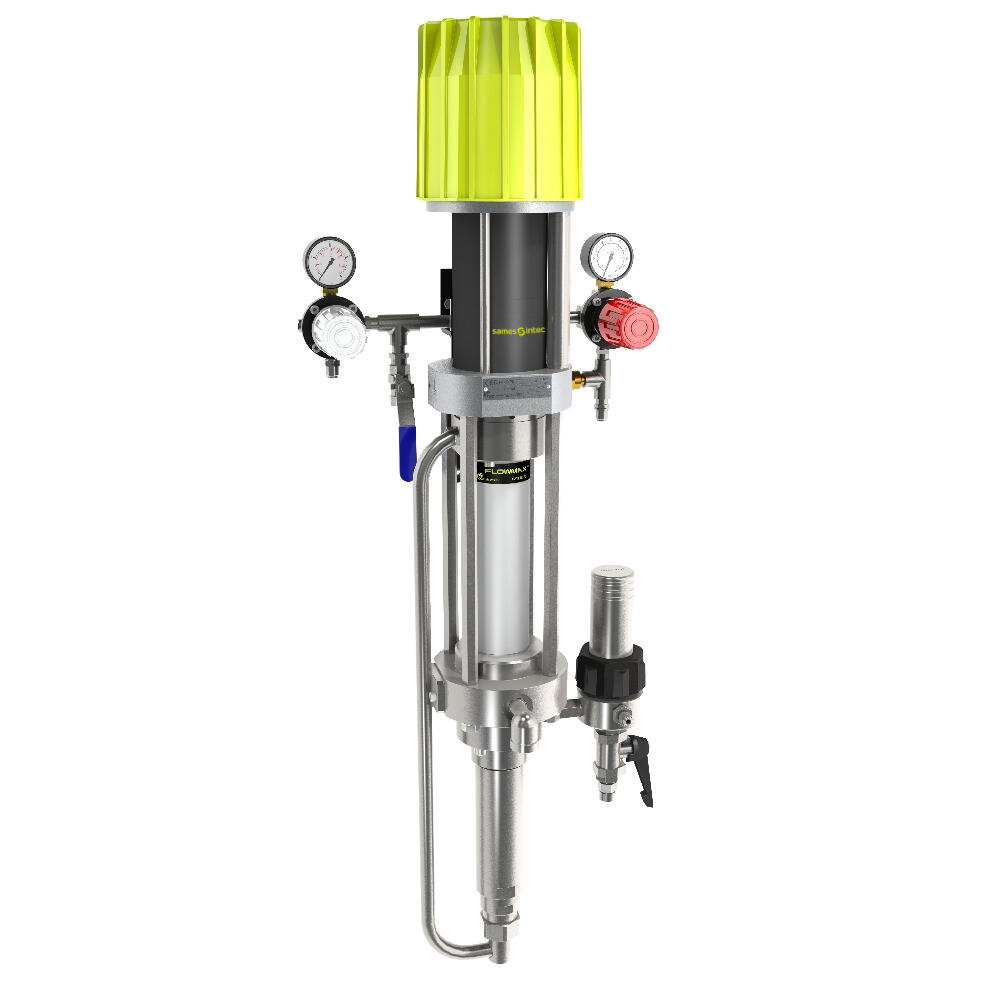

Sames Kremlin® 20F50 PH Airmix® Flowmax® Paint Pump with Pump Air Regulator

Sames Kremlin® 20F50 PH Airmix® Flowmax® Paint Pump with Pump Air Regulator

Built for long, low-maintenance service in Airmix® finishing. The Sames Kremlin 20F50 PH uses patented Flowmax® bellows technology for total sealing and extended life, with no lubricating cup to maintain. A 20:1 pressure ratio and 50 cc displacement make it a smooth, consistent supply pump for Airmix® spray guns, and it ships complete with a pump air regulator.

Key Features

• Flowmax® bellows technology: Patented design rated for a lifetime of up to 10,000,000 cycles
• Maintenance-free sealing: No lubricating cup to fill or monitor
• Gentle on materials: Floating piston reduces material shear and extends seal life
• Quiet, responsive air motor: Ball-bearing reversing unit for very quick changeovers and longer air motor life
• Stainless steel wetted parts: Compatible with a wide range of solvent-based and waterborne materials
• Easy service: External valve assembly for fast access, plus easy air motor distributor servicing
• Ready to run: Includes pump air regulator for fluid pressure control

Specifications

• Model: 20F50 PH Airmix® Flowmax® Paint Pump
• Pressure Ratio: 20:1
• Displacement: 50 cc/cycle
• Maximum Fluid Pressure: 1,740 psi (120 bar)
• Maximum Air Pressure: 87 psi (6 bar)
• Fluid Output: 0.26 gpm (1 L/min) at 20 cycles/min; 0.8 gpm (3 L/min) at 60 cycles/min
• Maximum Temperature: 122°F (50°C)
• Wetted Parts: Stainless steel

Ideal for wood, metal, and general industrial finishing shops running Airmix® guns that want dependable fluid supply with minimal upkeep.
