Sames 20C50 Air Assisted Airless Package

Sames 20C50 Airmix® Pump Package with Xcite+ 120 Spray Gun

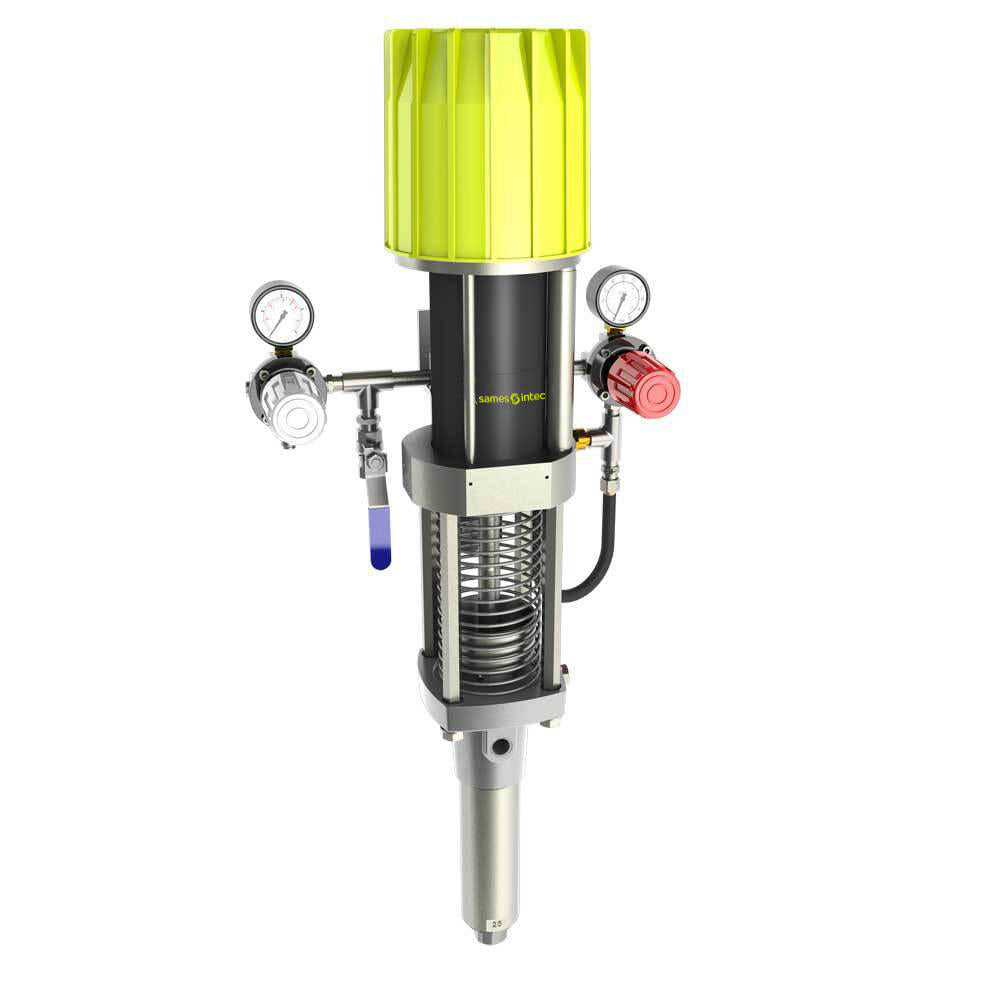

Get production-ready Airmix® finishing in one box. The Sames 20C50 is a 20:1 air-operated pump that moves 50 cc per cycle, delivering up to 3 L/min (0.79 gal/min) at fluid pressures to 1,740 psi. That’s enough flow to keep one or two operators spraying all shift. It comes wall-mounted and fully assembled with the Xcite+ 120 Airmix® gun, VX124 air cap, and a selection of hose lengths and a suction rod sizes - so you can mount it, hook up air and start spraying.

The quiet air motor runs on just 6.4 cfm. The fluid section has no dead zones, which makes flushing and color changes fast. The piston seal wipes the cylinder wall clean as it runs, and with fewer parts, a triple-chrome piston and wear-resistant seals, the pump spends less time on the bench and more time on the line.

Package includes

• 20C50 Airmix® pump, wall-mounted

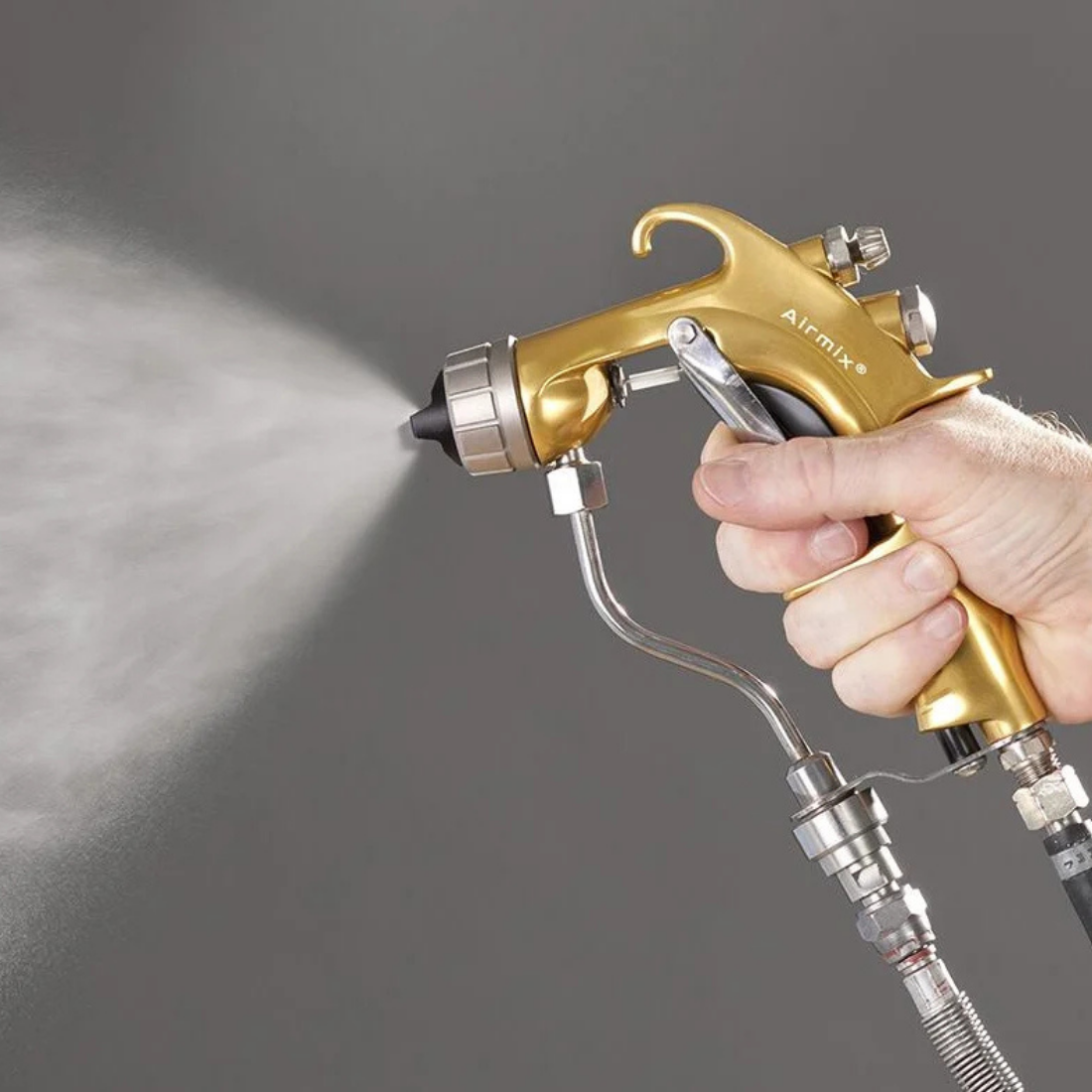

• Xcite+ 120 Airmix® spray gun with VX124 air cap
• A Selection of Fluid and Air Hose Length Options
• A Selection of Suction rod options.

Specs at a glance

• Ratio: 20:1 | Displacement: 50 cc/cycle
• Max fluid pressure: 1,740 psi (120 bar)
• Max air pressure: 87 psi (6 bar)
• Free flow: 0.79 gal/min (3 L/min)
• Air consumption: 6.4 cfm | Noise: 78 dBA
• Max material temp: 140°F (60°C)
• Wetted parts: hard-chrome stainless, 303 SS, PTFE, polyethylene
• Weight: 37.5 lb (17 kg)

Air Motor Linked Parts Manual

Assembly Linked Parts Manual

Fluid Section Linked Parts Manual

GT Fluid Section Linked Parts Manual
