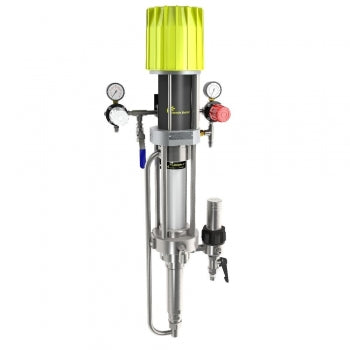

Sames Kremlin® 20F50 Airmix® Flowmax® Wall-Mount Spray System

Sames Kremlin® 20F50 Airmix® Flowmax® Wall-Mount Spray System with Xcite® 120 Gun

A complete Airmix® finishing package built for dependable, low-maintenance production. This system pairs the wall-mounted Sames Kremlin 20F50 Flowmax® paint pump with the Xcite® 120 Airmix® spray gun, combining near-airspray finish quality with Airmix® productivity and reduced overspray. Patented Flowmax® bellows technology means total sealing, long service life, and no lubricating cup to maintain.

Key Features

• Complete package: 20F50 Flowmax® pump, wall-mount setup, and Xcite® 120 Airmix® spray gun
• Flowmax® bellows technology: Patented design rated for a lifetime of up to 10,000,000 cycles
• Maintenance-free sealing: No lubricating cup to fill or monitor
• Gentle on materials: Floating piston reduces material shear and extends seal life
• Quiet, responsive air motor: Ball-bearing reversing unit for quick changeovers and longer motor life
• Stainless steel wetted parts: Compatible with a wide range of solvent-based and waterborne coatings
• Airmix® efficiency: Air-assisted airless spraying delivers a fine finish with less overspray and material waste
• Space-saving: Wall-mounted design keeps the pump off the floor

Pump Specifications

• Pump Model: 20F50 Airmix® Flowmax®
• Gun Model: Xcite® 120 Airmix®
• Mounting: Wall mount
• Pressure Ratio: 20:1
• Displacement: 50 cc/cycle
• Maximum Fluid Pressure: 1,740 psi (120 bar)
• Maximum Air Pressure: 87 psi (6 bar)
• Fluid Output: 0.26 gpm (1 L/min) at 20 cycles/min; 0.8 gpm (3 L/min) at 60 cycles/min
• Maximum Temperature: 122°F (50°C)
• Wetted Parts: Stainless steel
